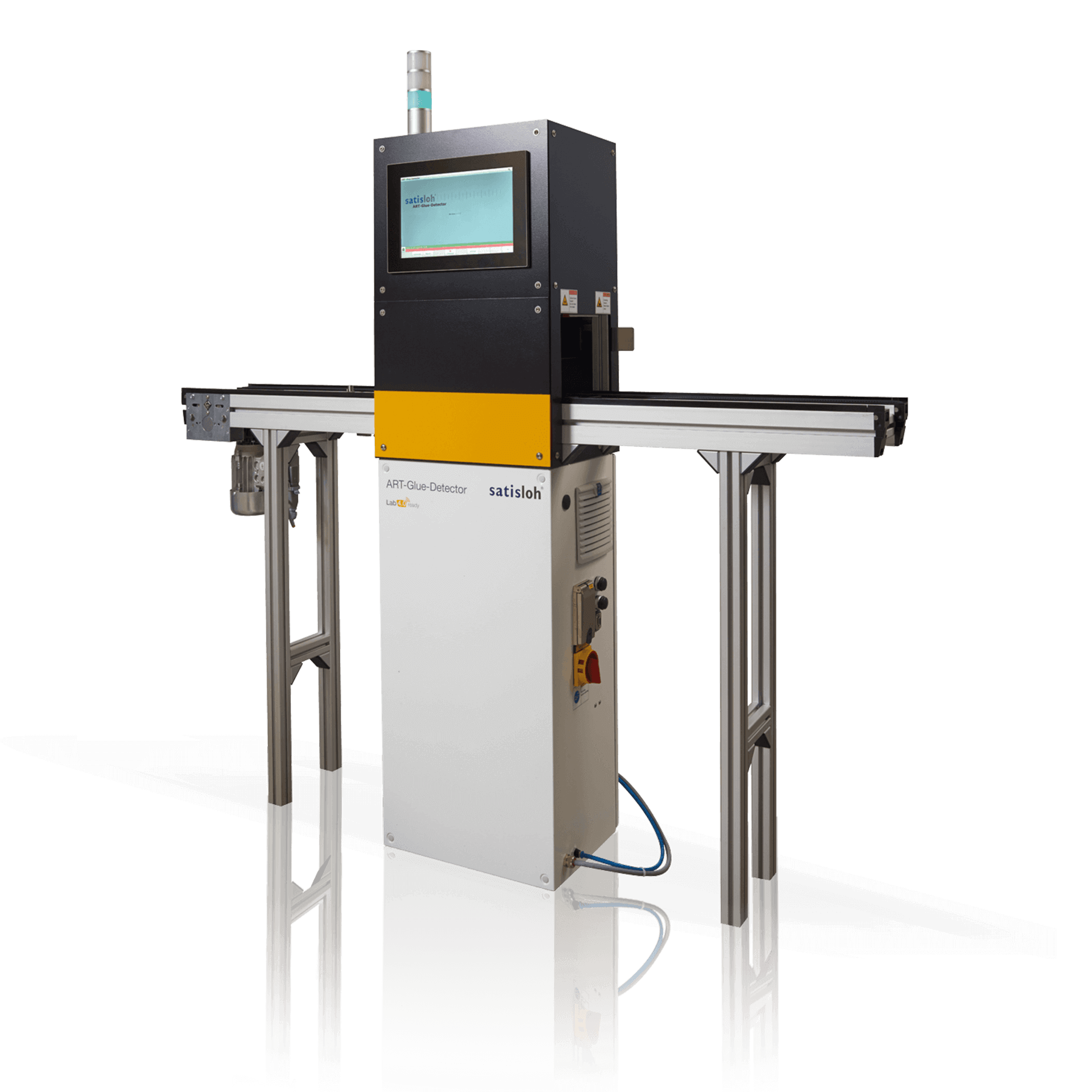

After deblocking job tray is scanned and moves into the ART-Glue-Detector.
Detection of glue residue via camera and image recognition software.
Direct communication with LMS and MES.
ART-Glue-Detector identifies the few lenses that require manual cleaning and allows the vast majority of lenses to proceed without any manual intervention.

Tech Specs

Productivity:	Up to 300 jobs trays/hour
Working range:	Lens diameter 55 – 85 mm Lens thickness up to 30 mm Plano up to +15 dpt base curve Prism up to 5° Progressives, multi-focals, single vision lenses
Dimensions (wxdxh):	1610 x 415 x 1815 mm / 64 x 17 x 72 inches with conveyor
Weight:	About 130 kg / 287 lb

All technical data subject to change without notice. Verify details with Satisloh.
