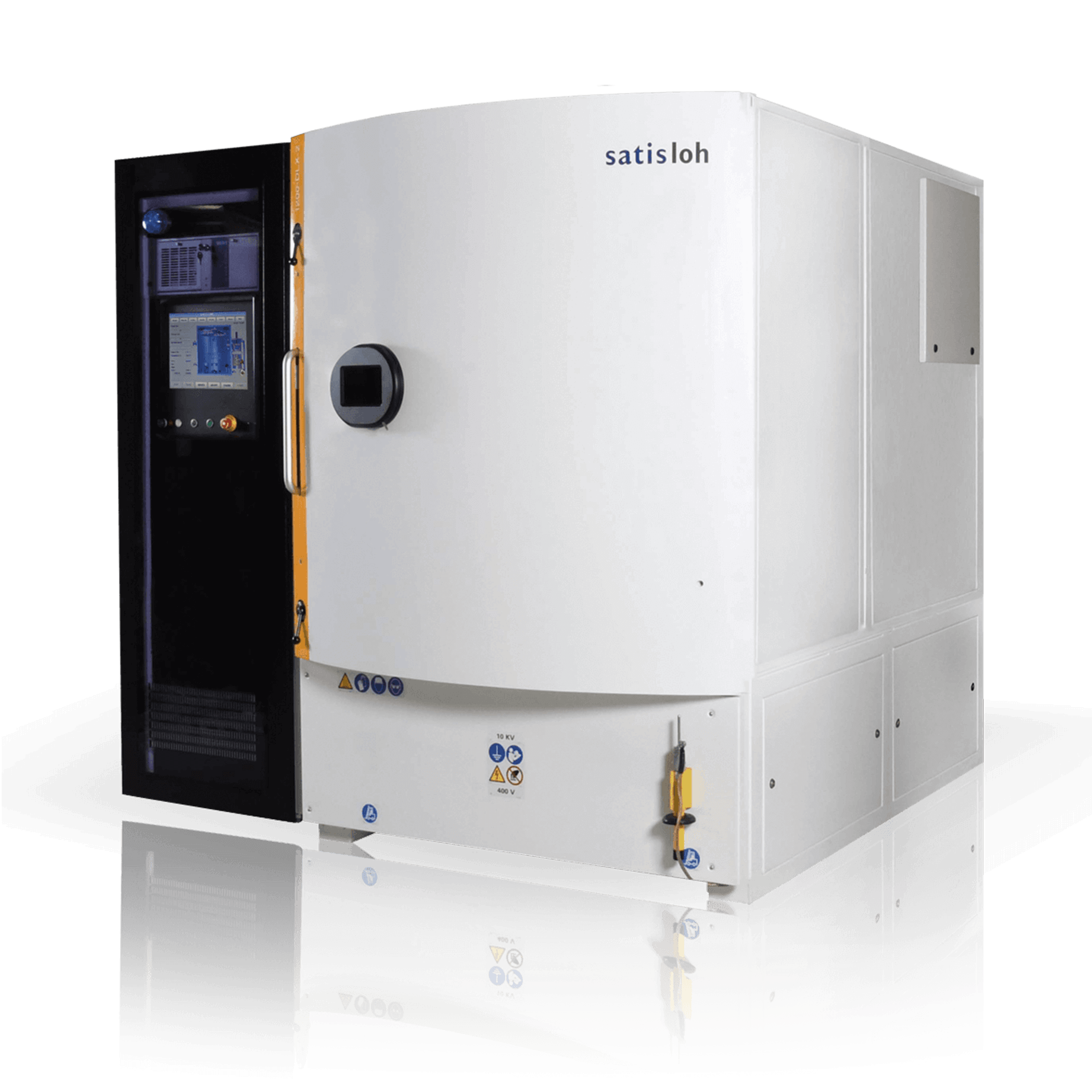

High-volume AR & mirror coater

  • Capacity: up to 209 lenses/batch Ø70 mm with ringless full dome.
  • Multiple lens coating process applications: Anti-Reflective; mirror; topcoat; & in-chamber tinting on organic & mineral glass lenses.
  • Deposition of multiple coating process features in one single run.
  • Larger Meissner trap with intelligent, movable shield system optimizes pumping speed and protects against surface contamination.
  • Portable degassing system shareble with other coaters, reduces chamber degassing & maintenance time, and shortens processing cycles.
  • Simplified electron-beam emitter for easy maintenance & increased reliability.
  • Ion-beam assisted deposition for best layer adhesion and hardness.
  • Special substrade gradient & planetary holders (available upon request).

Processes

Coating processes for Rx lenses

  • Top coating - Hydrophobic, Super Hydrophobic & Super Hydro/Oleophobic
  • AR coating - Ultimate, Premium, Performance, Classic, Multicote X
  • Mirror coating - Spectraflex X
  • Specialized coating - Protect-Blue, Protect UV, Protect Complete & Protect High Contrast
  • In-chamber tinting - Various colors & absorption levels

1200-DLX-2 vacuum box coater can be customized to meet your product, process & production requirements.

Perfectly matched Satisloh ophthalmic lens coating processes, consumables, and box coaters guarantee best coating performance.

Tech Specs

6-sector dome lens capacity: (ringless sector on request)

Ø 65 mm up to 198 lenses/batch Ø 70 mm up to 168 lenses/batch Ø 75 mm up to 150 lenses/batch Ø 80 mm up to 126 lenses/batch

Ringless full dome lens capacity:

Ø 65 mm up to 245 lenses/batch Ø 70 mm up to 209 lenses/batch Ø 75 mm up to 174 lenses/batch Ø 80 mm up to 156 lenses/batch

Flip over lens capacity:

Ø 65 mm up to 144 lenses/batch Ø 70 mm up to 120 lenses/batch Ø 75 mm up to 108 lenses/batch Ø 80 mm up to 96 lenses/batch

3-sector dome (ringless) & Planetary cylinders lens capacity: Available upon request
Lens material: All organic materials and mineral glass
Dimensions (wxdxh): 2171 x 3145 x 2440 mm / 85.5 x 123.8 x 96 inches
Weight: 3637 kg / 8018 lb

All technical data subject to change without notice. Verify details with Satisloh.
